Price: $13.99
(as of Jan 02, 2024 05:29:05 UTC – Details)
Product Description
Relative Parameters:

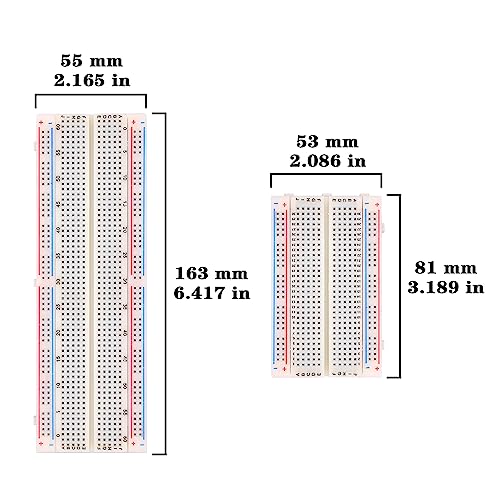

830 Points breadboard’s size: 16.3 x 5.5 x 1 cm / 6.41 x 2.16 x 0.39 inch
400 Points breadboard’s size: 8.2 x 5.5 x 1 cm / 3.22 x 2.16 x 0.39 inch
14 Values 24AWG U-Shape male to male jumper wires’ length – 2mm, 5mm, 7mm, 10mm, 12mm, 15mm, 17mm, 20mm, 22mm, 25mm, 50mm, 75mm, 100mm, 125mm.
65pcs breadboard flexible jumper wires’ length – 25cm / 9.84inch , 20cm / 7.87inch , 16cm / 6.29inch , 12cm / 4.72inch.

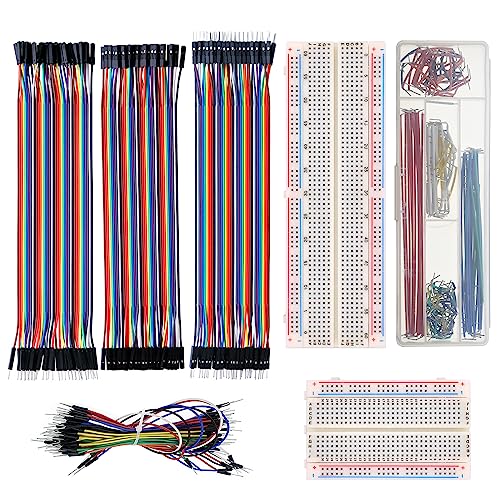

Package Includes :
830 Tie-Points Breadboard x 1piece
400 Tie-Points Breadboard x 1piece
U-Shape Male to Male Jumper Wires * 140pcs
Flexible Breadboard Jumper Wires * 65pcs
40pin Female to Female dupont cable wires x 1piece
40pin Male to Female dupont cable wires x 1piece
40pin Male to Male dupont cable wires x 1piece
What‘s the Breadboard ？
400 Tie Point Breadboard & 830 Tie Point Breadboard
The breadboard is specially designed and manufactured for non-soldering experiments of electronic circuits because there are many small jacks on the board. Since various electronic components can be inserted or pulled out as needed, soldering is eliminated, circuit assembly time is saved, and components can be reused, so it is very suitable for assembly, debugging and training of electronic circuits.
Breadboard with adhesive backing = easy to fix.
Breadboard contains metal strips = highly conductive and safe to use.

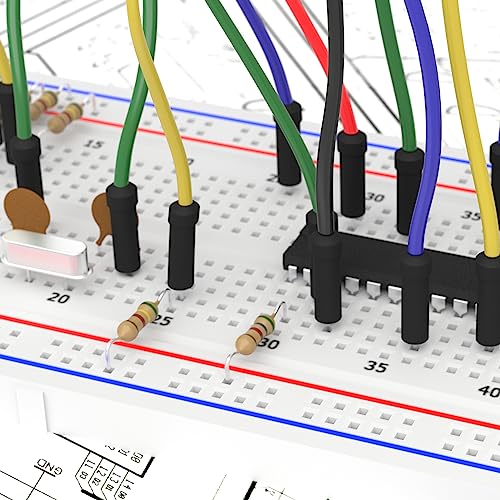

How to use the breadboard:
The circuit and components can be tested by inserting the components into the holes without soldering and manual wiring, which is convenient to use.
There are several metal jacks connected to the conductive metal strips on the back of the breadboard, which correspond to the small holes on the front, so when using the breadboard, you need to pay attention.
When inserting the component pins into the small holes, be sure to insert the component pins to the bottom. , if necessary, with the help of tweezers.

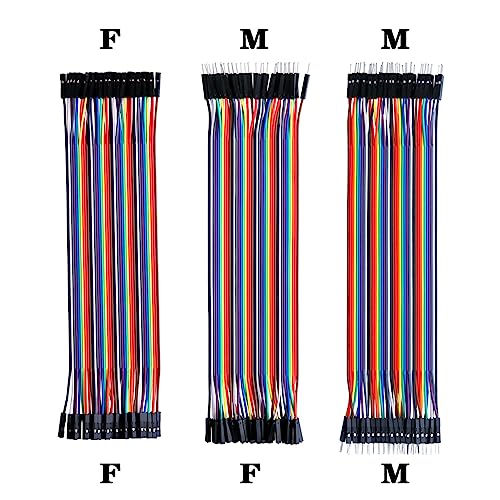

Dupont Cable Wires
40pin Female to Female wires
40pin Male to Female wires
40pin Male to Male wires
Flexible Jumper Wires
65pcs breadboard flexible jumper wires – Male to Male – Meet the connection needs of the Bread board

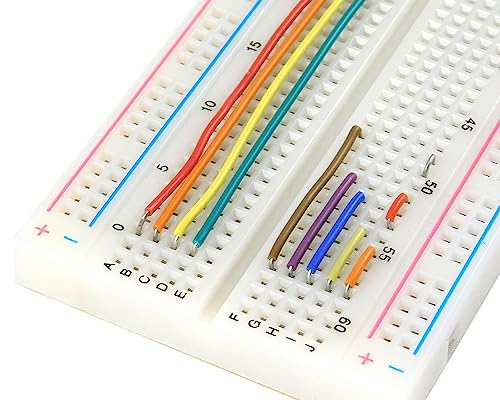

U-Shape Jumper Wires
14 Values 24AWG U-Shape male to male jumper wires – 2mm, 5mm, 7mm, 10mm, 12mm, 15mm, 17mm, 20mm, 22mm, 25mm, 50mm, 75mm, 100mm, 125mm.
Breadboard
400 Tie Point Breadboard
830 Tie Point Breadboard
Widely Application
Package Dimensions : 9.57 x 5.63 x 1.65 inches; 13.12 Ounces
Item model number : Breadboard Jumper Wires Kit
Date First Available : April 8, 2023
Manufacturer : ALLECIN
ASIN : B0C1VDKPW2
Country of Origin : China
400 Tie Point & 830 Tie Point Breadboards‘ Material : ABS plastic panel and tin plated phosphor bronze contact sheet – Provide a better connection.
14 Values 24AWG U-Shape male to male jumper wires – 2 mm, 5 mm, 7 mm, 10 mm, 12 mm, 15 mm, 17 mm, 20 mm, 22 mm, 25 mm, 50 mm, 75 mm, 100 mm, 125 mm & 65pcs breadboard flexible jumper wires – Meet the connection needs of the Bread board & 40pin Female to Female / 40pin Male to Female / 40pin Male to Male dupont cable wires.
Features & Advantages : Since various electronic components can be inserted or pulled out as needed, soldering is eliminated, circuit assembly time is saved, and components can be reused, so it is very suitable for assembly, debugging and training of electronic circuits.
Humanized packaging for easy storage and use. ### Please confirm the size &data before purchasing.
