Price: $9.99
(as of Oct 22, 2023 12:01:44 UTC – Details)
Product Description

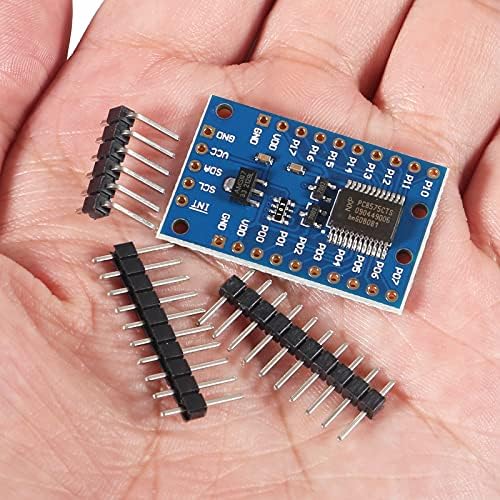

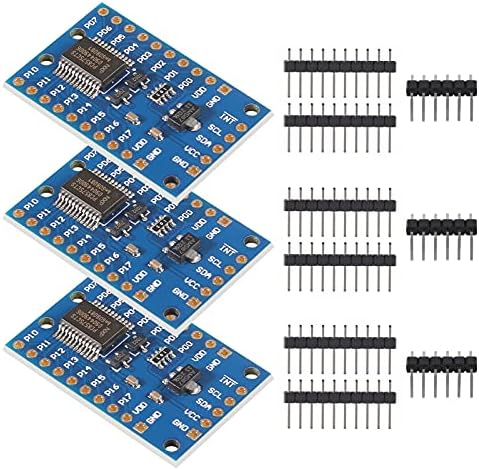

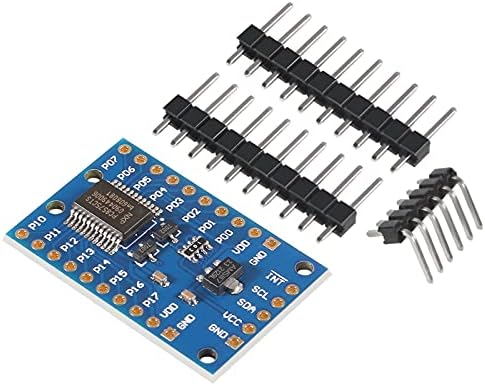

New Open-Smart PCF8575 IO Expander Board Module I2C to 16IO For Arduino
Have you run out of I/O pins? This great module allows the user to expand up to 16 I/O using only two I/O for control! The PCF8575 is controlled through an I2C interface and features 16-bits of quasi-bidirectional input/output pins.

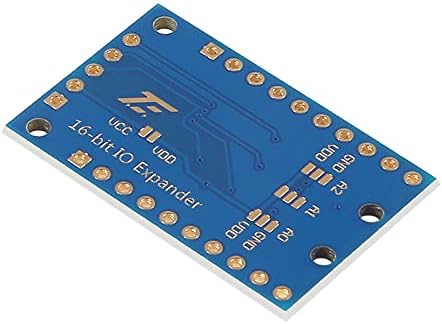

On board 3.3V level converter circuit, if you donot solder VCC-VDD pad, the PCF8575 level is 3.3V. If you solder it, the level will be the same with VCC.
Features:
– for Arduino available library: PCF8575
– Working voltage: 2.5 – 5.5VDC
– Working current: 100mA(MAX)
– I2C address: 0x20(default),can be modified by soldering A1 and A2 selection pads.
– 16 individually addressable pins.
– Each pin configurable for input or output.
– Open-drain interrupt output pin for input change interrupt.
– Great for Arduino R3 and other MCU to control simple relay, buzzer, button, led.
Working current: 100mA(MAX); I2C address: 0x20(default),can be modified by soldering A1 and A2 selection pads.
16 individually addressable pins; Each pin configurable for input or output.
Open-drain interrupt output pin for input change interrupt.
New Open-Smart PCF8575 IO Expander Board Module I2C to 16IO for Arduino for Arduino R3 and other MCU to control simple relay, buzzer, button, led.
